Product Sku: EX-High

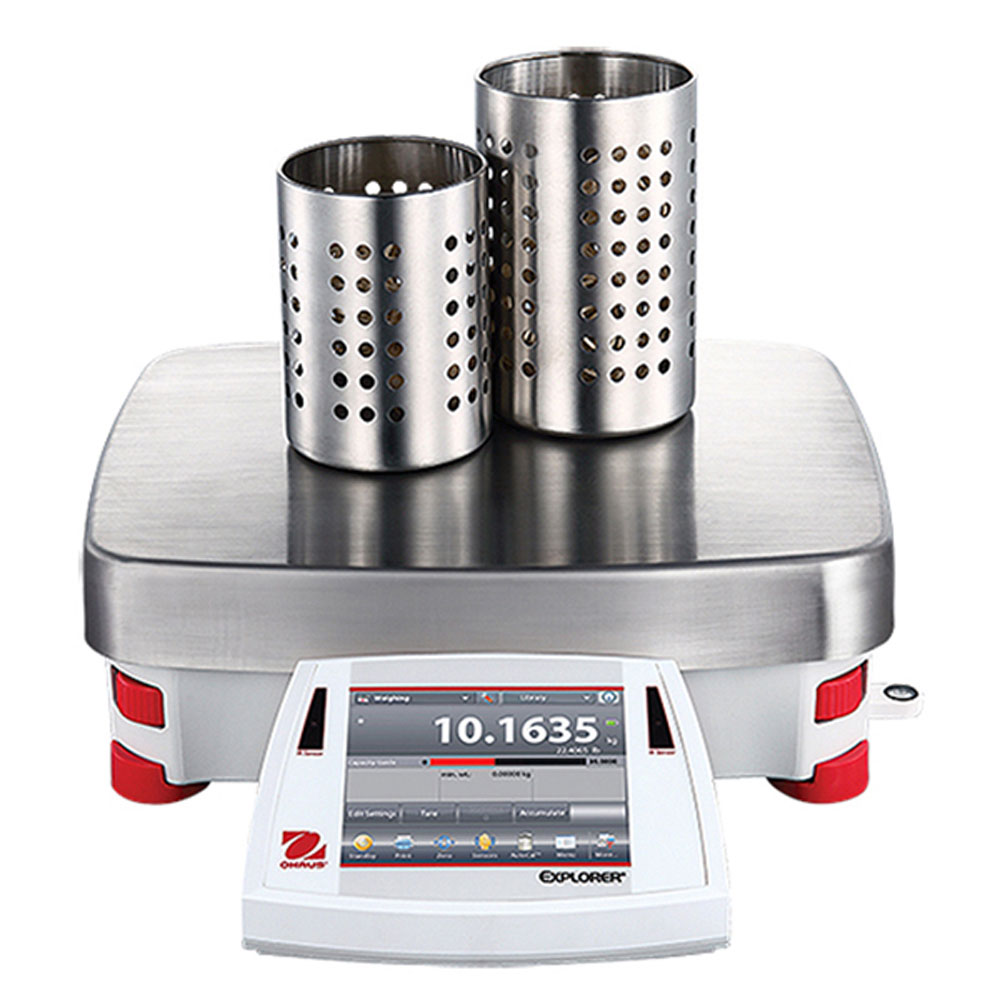

Ohaus Explorer High Capacity Balances

Starting at: $4,620.60

Product Description

The Explorer series now includes three high-capacity precision models with capacities up to 35 kg. Explorer high-capacity balances offer the same intuitive features, such as AutoCal and a 1 second stabilization time, with additional functions and attributes to support higher capacity weighing applications.

Model #	Item #	Capacity	Readability	Platform	Internal Calibration	IP and NEMA Rating	Test Weight
EX12001	30057099	12000g	0.1g	377 � 311 mm	X	X	12000g, OIML F1 or ASTM Class 2
EX24001	30057100	24000g	0.1g	377 � 311 mm	X	X	24000g, OIML F1 or ASTM Class 2
EX35001	30057101	35000g	0.1g	377 � 311 mm	X	X	35000g, OIML F1 or ASTM Class 2

Specs & Features

Product Details

Code: Ohaus-EX-High

Product Sku: EX-High

Brand: Ohaus Scales

Handling Time: Usually ships in 3 days

Ships Via: Ground

Specifications

Base Housing (W x H X D): 14.84 x 4.72 x 17.44 in / 377 x 120 x 443 mm

Calibration: AutoCal internal calibration

Communication: Standard RS-232, USB, Optional ethernet or 2nd RS-232

Display Housing (W x H X D): 7.68 x 3.54 x 6.06 in / 195 x 90 x 154 mm

Display Size: 5.7 in / 145 mm (diagonal)

Display Type: Full color VGA graphic display, 4 wire resistive touch screen

Linearity: 0.2

Net Weight: 22 lbs / 10 kg

Operating Humidity Range: 80% max up to 86 ° F/30 ° C, decreasing linearly to 50% at 104 ° F/40 ° C, non-condensing

Operating Temperature Range: 50 to 86 ° F / 10 to 30 ° C

Pan Size: 14.84 x 12.24 in / 377 x 311 mm

Power: Power input 100-240 VAC, 0.5-0.25A, 47-63 Hz, Power Output:24 VDC, 0.63 A, 15W

Readability: 0.1 g

Repeatability std: 0.1

Sensitivity Draft (PPM/ ° C): 3

Stabilization Time: < 1

Storage Conditions: 14 ° F/-10 to 140 ° F/60 ° C at 10% to 90% relative humidity, non-condensing

Tare Range: To capacity by subtraction

Typical Min Weight (GLP, K=2, U=0.1%): 140 g

Typical Min Weight (USP, K=3, U=0.1%): 210 g

Weighing Application: Weighing, Percent Weighing, Parts Counting, Checkweighing, Dynamic Weighing/Animal Weighing, Filling, Totalization, Formulation, Differential Weighing, Density Weighing, Peak Hold, Ingredient Costs, SQC

Weighing Units: g, kg, ct, gn, lb, oz, ozt, N, dwt, hkt, sgt, twt, mom, tical, msg, tola, Custom Unit 1, Custom Unit 2, Custom Unit 3

Features

Images may contain props or optional accessories

Variants

	MFG Part #	UPC Code	Stock Status	Capacity
Ohaus EX12001 Explorer High Capacity Balance-12000 g Capacity	EX12001	081159807009	In Stock	12000 g
Ohaus EX24001 Explorer High Capacity Balance-24000 g Capacity	EX24001	081159807016	In Stock	24000 g
Ohaus EX35001 Explorer High Capacity Balance-35000 g Capacity	EX35001	081159807023	In Stock	35000 g
