Product Sku: SBI-521
Brecknell SBI-521 (SBI521) LCD Indicators
Starting at: $364.00
Date Expected: 03/21/2025
Product Description
The SBI-521 indicator series has a standard steel enclosure rated at IP65. These indicators can be used in wide variety of applications from bench, floor scale, batching system, check weighing and more. It comes with a large 6-digit, 7-segment, 25 mm LCD display and an estimated 48 hours of battery usage
Model | Display |

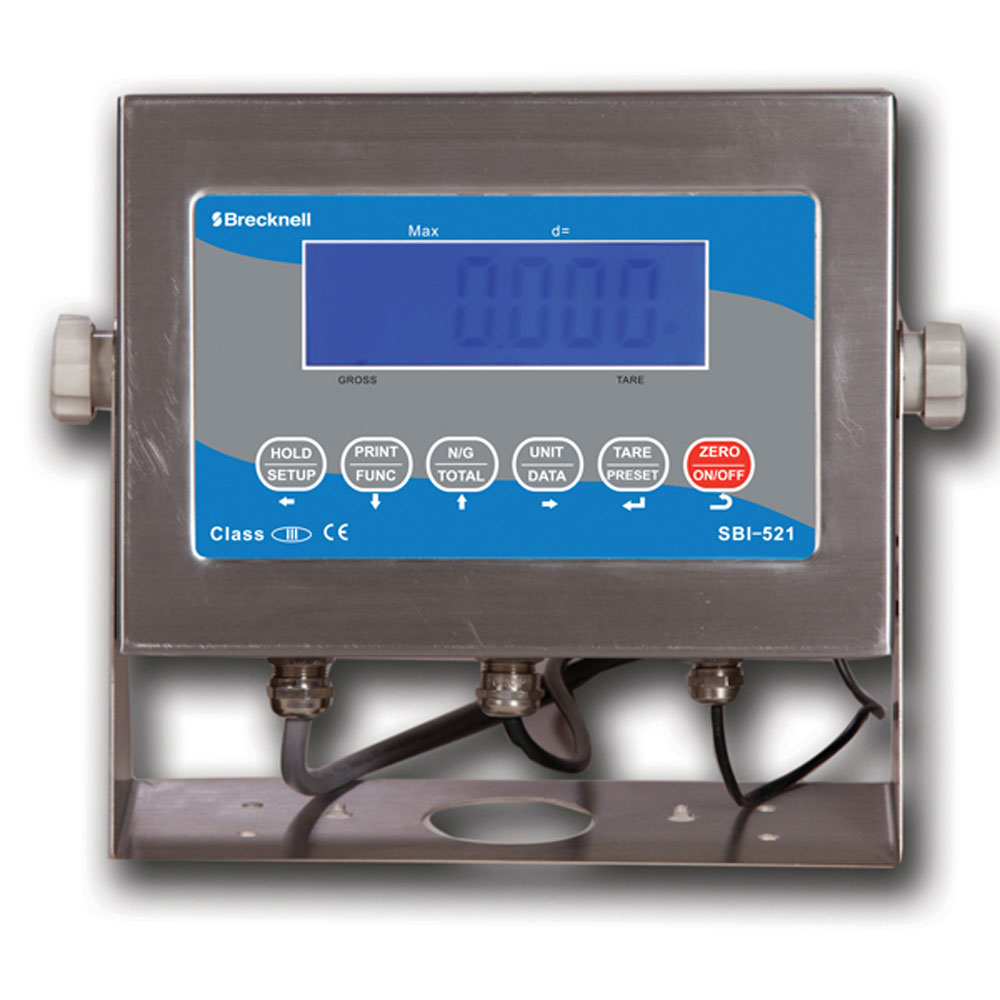

| SBI-521LCD | LCD |

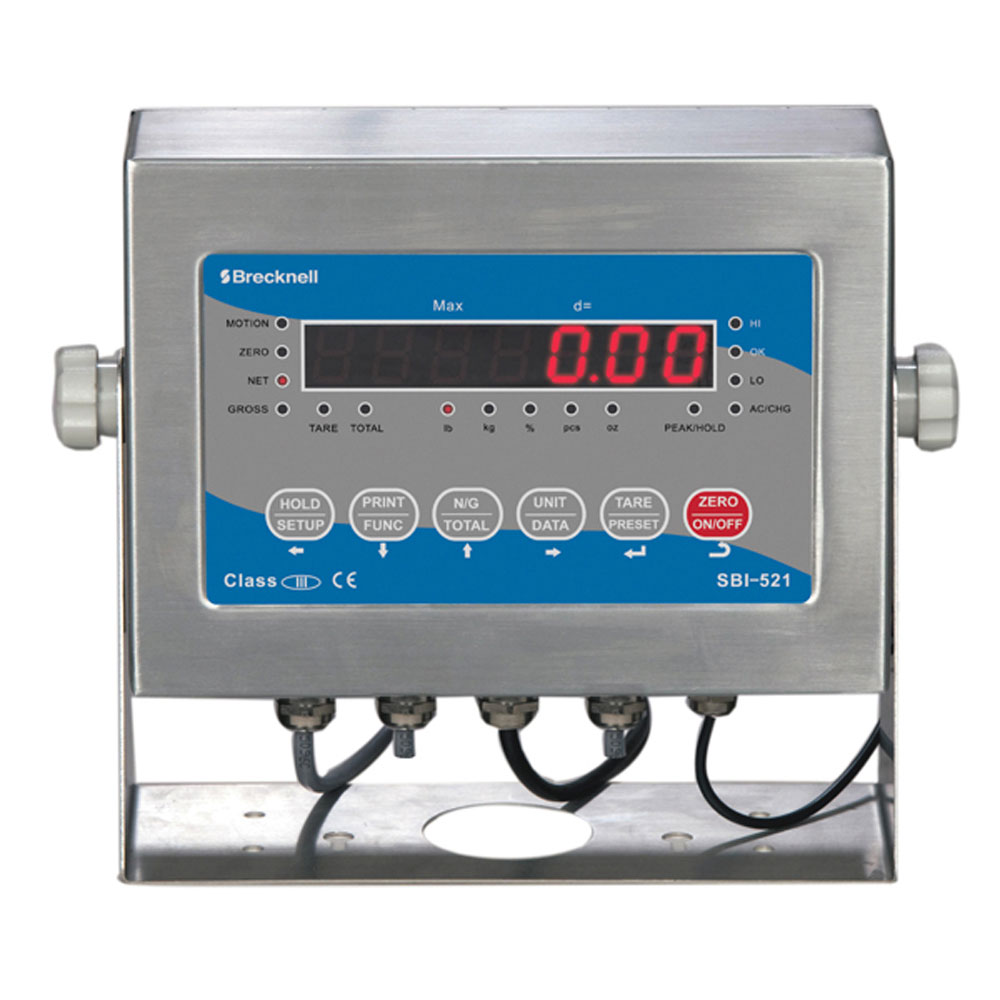

| SBI-521LED | LED |
Specs & Features
Product Details
Salter-Brecknell-SBI-521
SBI-521
Brecknell Scales
Usually ships in 3 days
Ground
Specifications
kg, lb, lb:oz, PCS, %
Hold/setup, print/func, n-g/total, unit/data, tare/preset, zero/on-off
-999, 999 to 999, 999
-3 mV/V to +3 mV/V
120mA, can power 8 @ 350 ohm loadcells
-10 to 40 ° C
Input 100 - 240VAC, 50 - 60Hz internal mounted power supply with output of 12VDC at 2 amps and 4 AH internal battery with built-in battery charging circuit
5 VDC
Features
Adjustable desktop stand for easy viewing angle
Available check weighing mode, parts counting mode, percentage mode, programmable hold function with peak and average capabilities
Battery voltage display and charging indicator
Fine Tune Weight Adjustment
Four Point Calibration
low pass filters
Misc menu to display ADC, Battery Voltage, Time and Date, Firmware Version and Com2 interface type
One hardware low pass filter and 2 programmable digital
Programmable Serial Output
Sealable Sub Menus
Test menus to test display, comm ports, keyboard
Variants
| MFG Part # | UPC Code | Stock Status | Version | ||
| Brecknell SBI-521 LED Indicator | AWT05-506155 | 081159803919 |
Out of Stock. Expected 03/21/2025 | LED Display |
| Brecknell SBI-521 LCD Indicator | AWT05-506154 | 081159803902 | In Stock | LCD Display |
